- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MMT471A315
- Part Number MMT471A315
- Manufacturer Metz Connect
- Pin Count 9
- Part Category Connector
- Package Category Other
- Footprint Name Other - MMT471A315-3
- Released Date May 15, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MMT471A315 Details
-
Manufacturer Part Number:
MMT471A315
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Germany
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Manufacturer:
METZ CONNECT USA
-
YTEOL:
8
-
Connector Type:
CIRCULAR CONNECTOR
MMT471A315 Frequently Asked Questions (FAQs)
-
The recommended torque value for the MMT471A315 connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 0.2 Nm to 0.5 Nm (1.8 in-lbs to 4.4 in-lbs) for the jackscrews.
-
Yes, the MMT471A315 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 1 Class B vibration standard, making it suitable for use in applications with high vibration levels.
-
Yes, the MMT471A315 connector is designed to operate in harsh environments. It has an operating temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95% RH.
-
The MMT471A315 connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent mating and unmating are required.
-
Yes, the MMT471A315 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated assembly lines.
Trust Checks
Community Provided
System Verified
Community Approved
MMT471A315 Overview

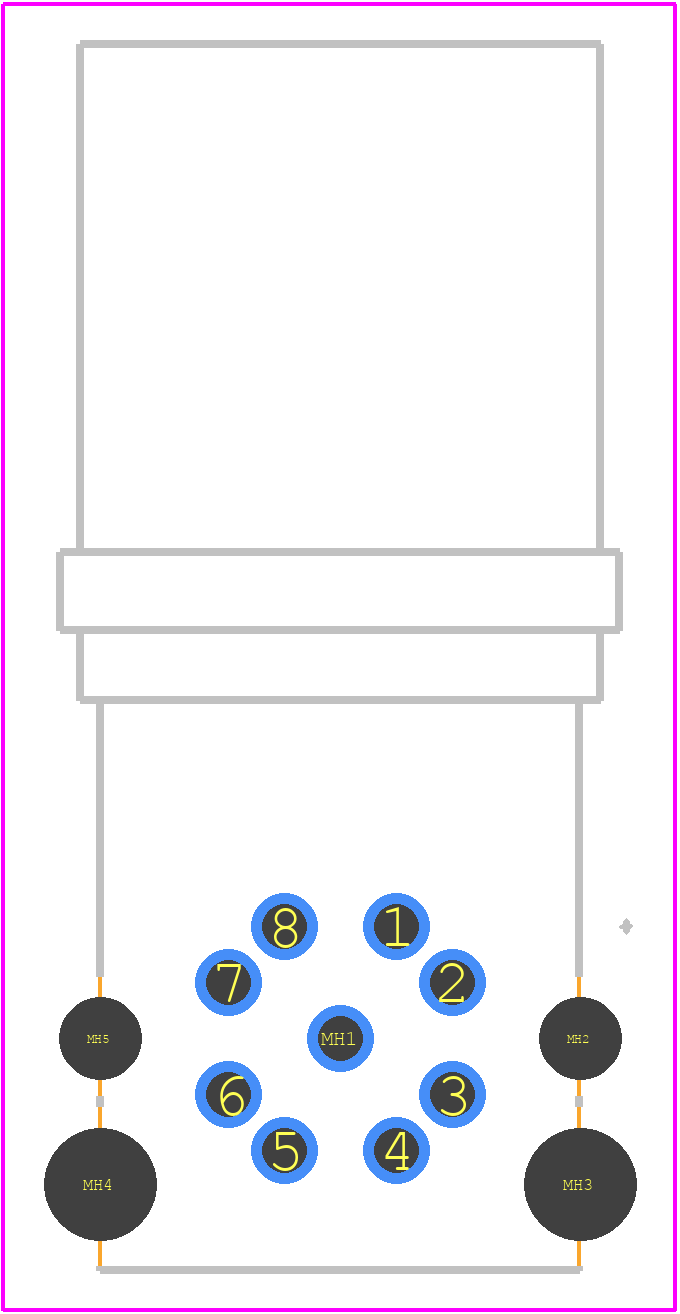

Use the download button to access the MMT471A315 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MMT47,
or try a keyword search, such as Other Circular Connectors
