MMZ25332B4T1 - NXP

Description: RF Amplifier InGaP HBT LINEAR AMPLIFIER, 1500-2700 MHz, 26.5 dB, 33 dBm

Download MMZ25332B4T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

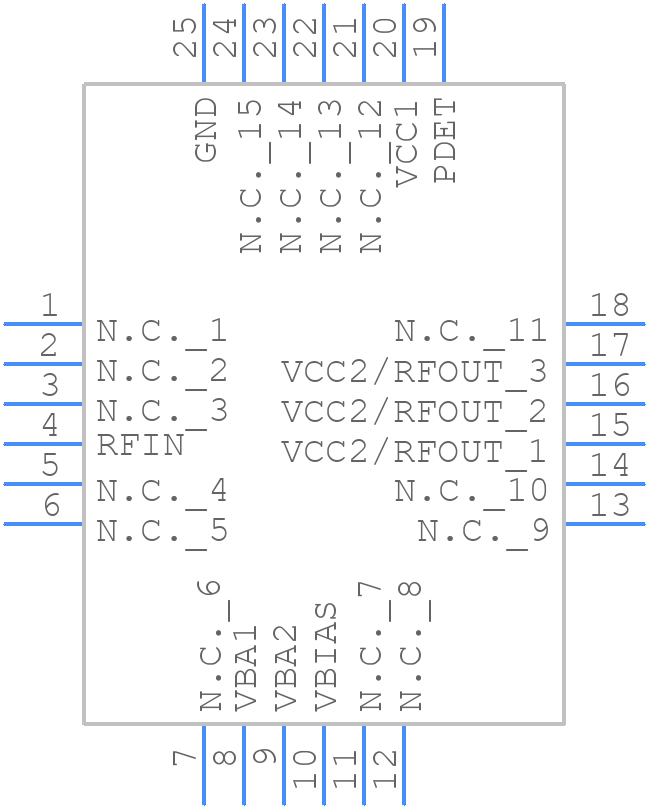

MMZ25332B4T1 - NXP - PCB symbol
click to zoom
PCB Footprints
MMZ25332B4T1 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MMZ25332B4T1
click to zoom
3D Models
MMZ25332B4T1 - NXP - 3D model - Quad Flat No-Lead - MMZ25332B4T1
click to zoom

MMZ25332B4T1 Details

  • Manufacturer Part Number:

    MMZ25332B4T1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    23.5 dB

  • Input Power-Max (CW):

    30 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    1500 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    415 mA

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Tin (Sn)

MMZ25332B4T1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible, and use a common mode choke to reduce EMI.
  • Ensure the input voltage is within the recommended range (2.5V to 5.5V), and the enable pin is properly biased (high or low) according to the application requirements.
  • The maximum power dissipation is 1.4W. Ensure good thermal conductivity by using a heat sink or a thermal pad, and keep the device away from other heat sources.
  • The MMZ25332B4T1 is rated for operation up to 125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments.
  • Check the PCB layout, ensure proper decoupling, and verify the input voltage and biasing. Use an oscilloscope to analyze the output waveform and identify any signs of oscillation or instability.
