- Part Number MN3007
- Manufacturer Panasonic
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - 8 LEAD DUAL INLINE PLASTIC PACKAGE_1
- Released Date Sep 9, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MN3007 Details
-
Manufacturer Part Number:
MN3007
-
Part Life Cycle Code:
Obsolete
-
Package Description:
PLASTIC, DIP-8
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
0
-
Consumer IC Type:
CONSUMER CIRCUIT
-
JESD-30 Code:
R-PDIP-T8
-
JESD-609 Code:
e0
-
Length:
9.6 mm
-
Number of Functions:
1
MN3007 Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the MN3007 is 3.5V to 12V, although it can operate up to 15V with reduced performance.
-
To ensure stability, use a decoupling capacitor (e.g., 10uF) between VCC and GND, and keep the input and output impedance matched. Also, avoid long wires and use a shielded cable for the input signal.
-
The maximum power dissipation of the MN3007 is 1.2W, so ensure that the device is properly heat-sinked and the ambient temperature is within the recommended range.
-
No, the MN3007 is not designed to be used as a voltage regulator. It's a audio frequency amplifier and should only be used for audio signal amplification.
-
To reduce noise and hum, use a well-regulated power supply, add a noise filter (e.g., RC filter) at the input, and ensure good grounding and shielding of the circuit.
Trust Checks
Expert Contribution
System Verified
Community Approved
MN3007 Overview

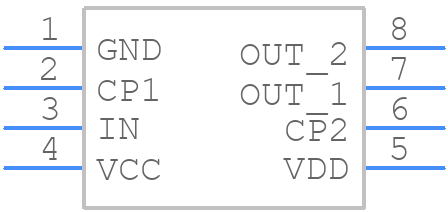

Use the download button to access the MN3007 schematic symbol, PCB footprint, and 3D model.
