MN3102 - Panasonic

Description: Clock Generator Driver/Driver for MN3200 Series BBD MN3 1 02 MN3102 CMOS CLOCK GENERATOR/DRIVER FOR LOW VOLTAGE OPERATION BBD ■ General description The MN3102 is a CMOS LSI generating two phase clock signal of low output impedance necessary to drive MN3200 series low voltage operation BBD. VGG power supply circuit is built-in exclusively used for the MN3200 series BBD* and most suitable VGG voltage can be obtained when the MN3102 is used with the same supply voltage as BBD. Self-oscillation is enabled

Download MN3102 Model

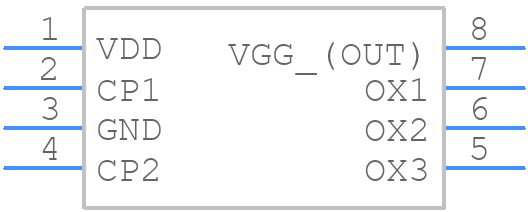

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MN3102 - Panasonic PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 LEAD DUAL INLINE PLASTIC PACKAGE
click to zoom
3D Models
MN3102 - Panasonic  - 3D model - Dual-In-Line Packages - 8 LEAD DUAL INLINE PLASTIC PACKAGE
click to zoom

MN3102 Details

  • Manufacturer Part Number:

    MN3102

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.8 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    MOS

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MN3102 Frequently Asked Questions (FAQs)

  • A good PCB layout for the MN3102 involves keeping the input and output pins separate, using a ground plane, and minimizing the distance between the IC and the crystal oscillator. A 4-layer PCB with a dedicated ground plane is recommended.
  • Choose a crystal oscillator with a frequency of 32.768 kHz, a load capacitance of 6-12 pF, and a series resistance of 30-60 ohms. Ensure the oscillator is compatible with the MN3102's operating voltage and temperature range.
  • The maximum allowed voltage for the MN3102 is 5.5V. Exceeding this voltage may damage the IC. It's recommended to operate the IC within the specified voltage range of 2.7V to 5.5V.
  • The MN3102's POR circuitry ensures a stable power-on reset. To handle it correctly, connect a capacitor (typically 0.1-1 uF) between the VCC pin and GND, and ensure the power supply voltage rises slowly (typically 1-10 ms) to prevent false resets.
  • The internal voltage regulator in the MN3102 generates a stable 2.2V voltage for the internal circuitry. This regulator helps to reduce noise and ensure stable operation, but it's not intended to power external circuits.
