A good PCB layout for the MN3205 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the MN3205 operates within the recommended temperature range, provide adequate heat dissipation through a heat sink or thermal pad, and avoid exposing the IC to high ambient temperatures. Also, consider using a thermal interface material to improve heat transfer.
Although the datasheet doesn't specify a maximum input voltage, it's recommended to limit the input voltage to 10V to prevent damage to the internal ESD protection diodes. Exceeding 10V may cause permanent damage to the IC.
Yes, the MN3205 can be used in switching power supply applications, but it's essential to ensure the IC is properly bypassed and decoupled to prevent noise and oscillations. Additionally, consider using a suitable output filter to reduce EMI and noise.
To troubleshoot oscillations or instability issues, check the PCB layout for proper grounding and decoupling, ensure the input and output capacitors are of suitable value and type, and verify the feedback loop is properly connected. Also, check for any signs of overheating or excessive current draw.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MN3205 Overview

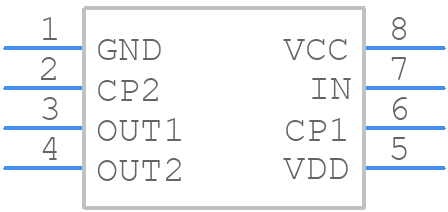

Use the download button to access the MN3205 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MN320,
or try a keyword search, such as Other Consumer ICs
