Part Image

MN3207 - Panasonic

Description: 3207 1024-STAGE LOW VOLTAGE OPERATION LOW NOISE BBD ■ General description The MN3207 is a 1024-stage long delay low noise BBD that provides a signal delay of up to 51.2ms and is particularly suitable as a device for generation of reverberation effect in audio equipment such as low voltage operation portable stereo and radio cassette recorders. ■ Features • Variable delay of audio signals: 2.56ms — 51.2ms. • Wide supply votage: 4 — 10V. • No insertion loss: Li = 0dB typ. • Wide dynami

Download MN3207 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

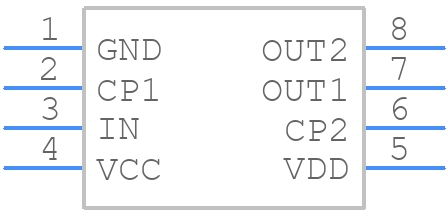

Symbol
MN3207 - Panasonic - PCB symbol
click to zoom
PCB Footprints
MN3207 - Panasonic PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 LEAD DUAL INLINE PLASTIC PACKAGE
click to zoom
3D Models
MN3207 - Panasonic - 3D model - Dual-In-Line Packages - 8 LEAD DUAL INLINE PLASTIC PACKAGE
click to zoom

MN3207 Details

  • Manufacturer Part Number:

    MN3207

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.8 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    MOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

MN3207 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MN3207 is -20°C to 85°C.
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground. Also, make sure to decouple the power supply with a 10uF capacitor.
  • The maximum input voltage that the MN3207 can handle is 12V, but it's recommended to keep it below 10V for optimal performance and to prevent damage to the device.
  • To troubleshoot issues with the MN3207, check the power supply voltage, ensure proper grounding, and verify that the input signals are within the recommended range. Also, check for any signs of overheating or physical damage to the device.
  • Yes, the MN3207 is suitable for high-frequency applications up to 100 kHz. However, it's essential to ensure proper PCB layout and decoupling to minimize noise and signal degradation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MN3207 Overview

Use the download button to access the MN3207 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MN320, or try a keyword search, such as Other Consumer ICs
