Part Image

MNA-2A+ - Mini-Circuits

Description: RF Amplifier MONOLITHIC AMPL / SURF MT/RoHS

Download MNA-2A+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

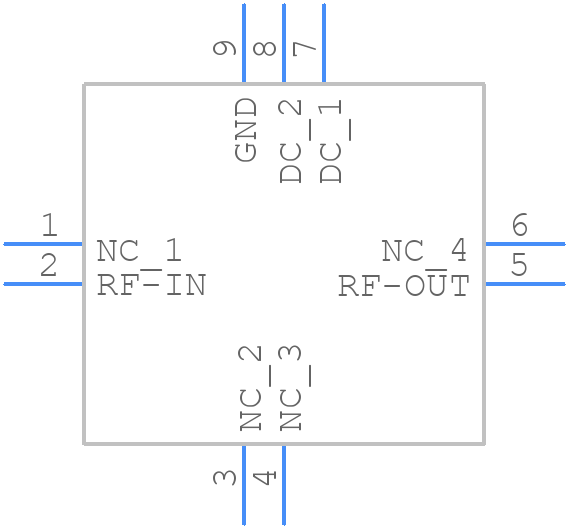

Symbol
MNA-2A+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
MNA-2A+ - Mini-Circuits PCB footprint - Other - Other - DQ849
click to zoom
3D Models
MNA-2A+ - Mini-Circuits - 3D model - Other - DQ849
click to zoom

MNA-2A+ Details

  • Manufacturer Part Number:

    MNA-2A+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.64

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13.5 dB

  • Input Power-Max (CW):

    16 dBm

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

MNA-2A+ Frequently Asked Questions (FAQs)

  • The MNA-2A+ can handle up to +20 dBm of input power without damage, but it's recommended to operate at +15 dBm or less for optimal performance.
  • The MNA-2A+ has a 50 ohm input and output impedance. To impedance match, use a 50 ohm coaxial cable and ensure that your system's output impedance is also 50 ohms.
  • The MNA-2A+ operates from -40°C to +85°C, but optimal performance is achieved between 0°C to 40°C.
  • Yes, the MNA-2A+ is designed for high-reliability applications and is available in a compact, ruggedized package. However, it's essential to consult with Mini-Circuits' application engineers to ensure the device meets your specific requirements.
  • Start by checking the input power level, impedance matching, and operating temperature. Ensure that the device is properly connected and that the input signal is within the recommended frequency range. If issues persist, consult the datasheet or contact Mini-Circuits' technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MNA-2A+ Overview

Use the download button to access the MNA-2A+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MNA-2, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
