MNA-4A+ - Mini-Circuits

Description: RF Amplifier IC Cellular 500MHz ~ 2.5GHz 8-QFN (3x3)

Download MNA-4A+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

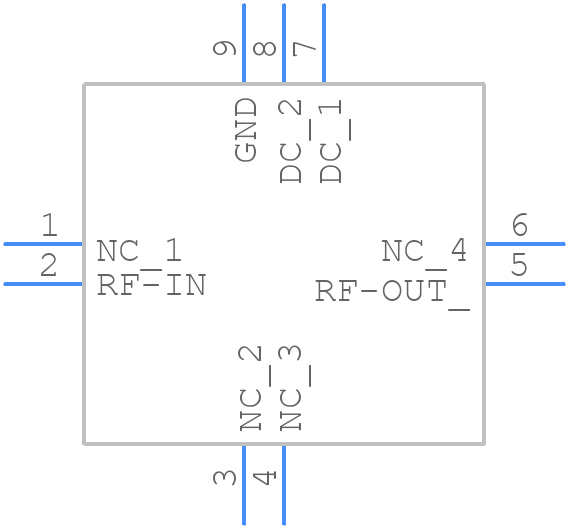

MNA-4A+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
MNA-4A+ - Mini-Circuits PCB footprint - Other - Other - MNA-4A+-2
click to zoom
3D Models
MNA-4A+ - Mini-Circuits - 3D model - Other - MNA-4A+-2
click to zoom

MNA-4A+ Details

  • Manufacturer Part Number:

    MNA-4A+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.64

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    16 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC8,.12SQ,25

  • Power Supplies:

    2.8 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    70.6 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Matte Tin (Sn)

MNA-4A+ Frequently Asked Questions (FAQs)

  • The MNA-4A+ can handle up to +20 dBm of input power without damage, but it's recommended to operate at +15 dBm or less for optimal performance.
  • The MNA-4A+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the amplifier's impedance to your system's impedance.
  • The MNA-4A+ operates from -40°C to +85°C, but optimal performance is achieved between 0°C to 50°C.
  • Yes, the MNA-4A+ can be used in switching applications, but it's recommended to add a 10-100 nF capacitor in parallel with the input and output to reduce switching noise.
  • The MNA-4A+ requires a single +12V to +15V power supply. Use a voltage regulator or a power supply with a low ripple to ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MNA-4A+ Overview

Use the download button to access the MNA-4A+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MNA-4, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
