MNA-6W+ - Mini-Circuits

Description: High Directivity Monolithic Amplifier 0.5-5.5 GHz.

Download MNA-6W+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

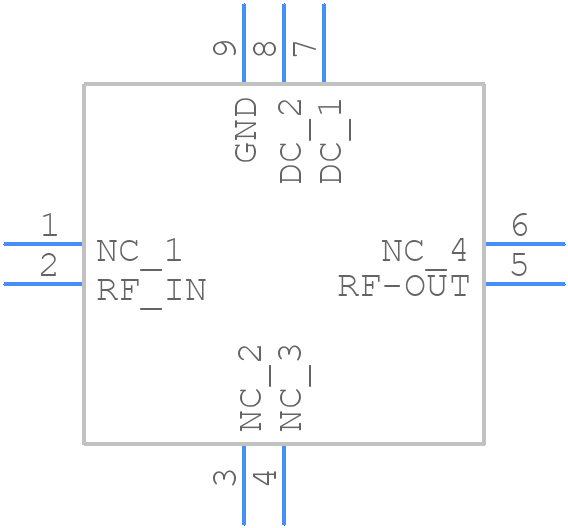

Symbol
MNA-6W+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
MNA-6W+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MNA-6W+
click to zoom
3D Models
MNA-6W+ - Mini-Circuits - 3D model - Quad Flat No-Lead - MNA-6W+
click to zoom

MNA-6W+ Details

  • Manufacturer Part Number:

    MNA-6W+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.2

  • Additional Feature:

    LOW NOISE, VSWR 1.17 at 2.8V

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    9.7 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    5500 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    2.8/5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    110 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.09

MNA-6W+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the MNA-6W+ is 85°C, but it's recommended to derate the power handling by 1 dB for every 10°C above 60°C to ensure reliable operation.
  • While the MNA-6W+ is not hermetically sealed, it can operate in humid environments. However, it's recommended to follow proper PCB design and assembly practices to prevent moisture ingress. Additionally, conformal coating can be applied to enhance humidity resistance.
  • Mini-Circuits recommends using a high-thermal-conductivity PCB material, such as Rogers 4350 or equivalent, to ensure efficient heat dissipation and minimize thermal resistance.
  • Yes, the MNA-6W+ can be used in a push-pull or balanced configuration to achieve higher power handling and improved linearity. However, this requires careful design and layout consideration to ensure proper impedance matching and thermal management.
  • Mini-Circuits recommends a soldering profile with a peak temperature of 260°C and a dwell time of 10-15 seconds to ensure reliable solder joints and prevent damage to the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MNA-6W+ Overview

Use the download button to access the MNA-6W+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MNA-6, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
