MOC207R2VM - onsemi

Description: Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; Minimum BVCEO of 70 V Guaranteed; MOC216M, MOC217M; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage"; MOC205M, MOC206M, MOC207M; Minimum BVCEO of 30 V Guaranteed; Safety and Regulatory Approvals:; "Closely Matched Current Transfer Ratios; Low LED Input Current Required for Easier Logic Interfacing; MOC211M, MOC212M, MOC213M, MOC216M,MOC217M; UL1577, 2,500 VACRMS for 1 Minute

Download MOC207R2VM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

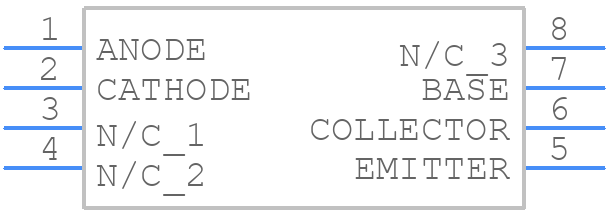

MOC207R2VM - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC207R2VM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MOC207R2VM
click to zoom
3D Models
MOC207R2VM - onsemi - 3D model - Small Outline Packages - MOC207R2VM
click to zoom

MOC207R2VM Details

  • Manufacturer Part Number:

    MOC207R2VM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000032 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC207R2VM Frequently Asked Questions (FAQs)

  • A good PCB layout for the MOC207R2VM should minimize lead lengths, keep the optocoupler away from high-voltage traces, and use a ground plane to reduce noise and EMI. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliable operation in high-temperature environments, follow the recommended derating curves for the MOC207R2VM. Also, consider using a heat sink or thermal pad to reduce the junction temperature, and ensure good airflow around the device.
  • The maximum allowable voltage on the input pins of the MOC207R2VM is 30V, although the recommended maximum is 20V to ensure reliable operation. Exceeding this voltage may damage the device.
  • The MOC207R2VM is suitable for high-frequency applications up to 100 kHz. However, the device's performance may degrade at higher frequencies due to internal capacitance and inductance. Consider using a faster optocoupler or a different device for very high-frequency applications.
  • The MOC207R2VM has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent ESD damage. Use an ESD wrist strap or mat, and store the devices in anti-static packaging.
