Part Image

MOC213M - onsemi

Description: Safety and Regulatory Approvals:; MOC211M, MOC212M, MOC213M, MOC216M,MOC217M; MOC216M, MOC217M; Low LED Input Current Required for Easier Logic Interfacing; Minimum BVCEO of 70 V Guaranteed; MOC205M, MOC206M, MOC207M; UL1577, 2,500 VACRMS for 1 Minute; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; Closely Matched Current Transfer Ratios; Minimum BVCEO of 30 V Guaranteed; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing

Download MOC213M Model

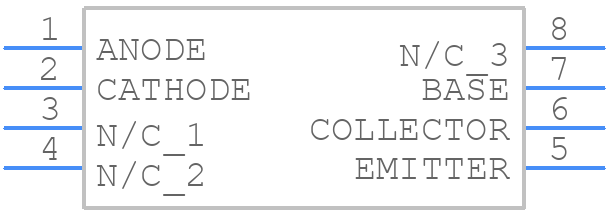

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MOC213M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MOC213M
click to zoom
3D Models
MOC213M - onsemi  - 3D model - Small Outline Packages - MOC213M
click to zoom

MOC213M Details

  • Manufacturer Part Number:

    MOC213M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000032 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC213M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC213M is -40°C to 100°C.
  • To ensure proper biasing, the input diode should be forward-biased with a current of 1-10 mA, and the output transistor should be biased with a collector-emitter voltage of 5-10 V.
  • The maximum allowable isolation voltage between the input and output of the MOC213M is 5000 Vrms.
  • The input resistor value should be chosen to limit the input current to 1-10 mA, while the output resistor value should be chosen to limit the output current to 10-50 mA.
  • The typical propagation delay time for the MOC213M is 1-2 μs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MOC213M Overview

Use the download button to access the MOC213M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC21, or try a keyword search, such as Optocoupler
