MOC213R2M - onsemi

Description: Safety and Regulatory Approvals:; MOC211M, MOC212M, MOC213M, MOC216M,MOC217M; MOC216M, MOC217M; Low LED Input Current Required for Easier Logic Interfacing; Minimum BVCEO of 70 V Guaranteed; MOC205M, MOC206M, MOC207M; UL1577, 2,500 VACRMS for 1 Minute; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; Closely Matched Current Transfer Ratios; Minimum BVCEO of 30 V Guaranteed; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing

Download MOC213R2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

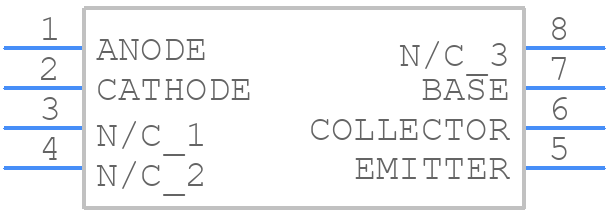

Symbol
MOC213R2M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC213R2M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O
click to zoom
3D Models
MOC213R2M - onsemi - 3D model - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O
click to zoom

MOC213R2M Details

  • Manufacturer Part Number:

    MOC213R2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000032 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC213R2M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC213R2M is -40°C to 100°C.
  • To ensure proper biasing, the input diode should be forward-biased with a current of at least 1 mA, and the output transistor should be biased with a collector current of at least 1 mA.
  • The maximum allowable voltage across the input diode is 5 V.
  • To prevent ESD damage, handle the MOC213R2M with an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or container.
  • While the MOC213R2M is not optimized for high-frequency applications, it can be used up to 100 kHz with some degradation in performance. For higher frequencies, consider using a specialized high-frequency optocoupler.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MOC213R2M Overview

Use the download button to access the MOC213R2M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC21, or try a keyword search, such as Optocoupler
