MOC217M - onsemi

Description: MOC211M, MOC212M, MOC213M, MOC216M,MOC217M; MOC205M, MOC206M, MOC207M; Minimum BVCEO of 70 V Guaranteed; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage"; "Closely Matched Current Transfer Ratios; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; Safety and Regulatory Approvals:; Low LED Input Current Required for Easier Logic Interfacing; Minimum BVCEO of 30 V Guaranteed; UL1577, 2,500 VACRMS for 1 Minute; MOC216M, MOC217M

Download MOC217M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

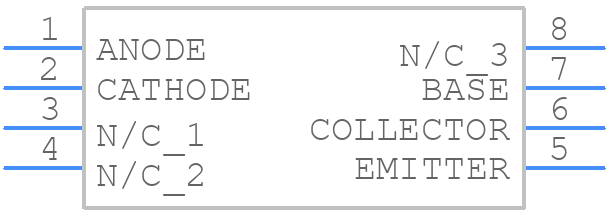

MOC217M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC217M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - https://static6.arrow.com/aropdfconversion/dfffe12848e72c94b966cb440bbd66b5a38df3c5/3904734470791581moc2
click to zoom
3D Models
MOC217M - onsemi - 3D model - Small Outline Packages - https://static6.arrow.com/aropdfconversion/dfffe12848e72c94b966cb440bbd66b5a38df3c5/3904734470791581moc2
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for MOC217M
  • Part Number MOC217M
  • Manufacturer onsemi
  • Pin Count 8
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - https://static6.arrow.com/aropdfconversion/dfffe12848e72c94b966cb440bbd66b5a38df3c5/3904734470791581moc2
  • Released Date Mar 5, 2021
  • Last Modified Date Jan 22, 2025 4:53 PM UTC
  • Pinout / Pin List Click Here (Member Only)

MOC217M Details

  • Manufacturer Part Number:

    MOC217M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    100%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000032 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC217M Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V, as exceeding this voltage can cause damage to the internal LED.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the current through the LED and ensure good thermal management, such as using a heat sink or providing adequate airflow.
  • The recommended input current for the MOC217M is 10mA to 20mA, depending on the specific application requirements. Exceeding this current can reduce the lifespan of the device.
  • While the MOC217M can be used for high-frequency applications, its bandwidth is limited to around 10kHz. For higher-frequency applications, a different optocoupler with a higher bandwidth may be required.
  • To ensure EMC when using the MOC217M, it is recommended to use proper PCB layout techniques, such as separating the input and output circuits, using shielding, and minimizing loop areas.
