Description:• Excellent IFT Stability - IR Emitting Diode Has Low Degradation• Peak Blocking Voltage; 400 V - MOC302XM• Safety and Regulatory Approvals; DIN EN/IEC60747-5-5; UL1577, 4,170 VACRMS for 1 Minute; 250 V - MOC301XM
A good PCB layout for MOC3010SM should ensure minimal lead lengths, separate grounds for analog and digital circuits, and a solid ground plane to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate analog ground plane is recommended.
To ensure reliable operation of MOC3010SM in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, derating the device's power handling capability according to the temperature derating curve in the datasheet is crucial.
When using MOC3010SM in a TRIAC-based dimmer circuit, it's essential to consider the TRIAC's gate current and voltage requirements, as well as the MOC3010SM's output current and voltage capabilities. The MOC3010SM's output should be designed to provide a sufficient gate current to the TRIAC, and the TRIAC's voltage rating should be compatible with the MOC3010SM's output voltage.
To protect MOC3010SM from EOS and ESD, it's essential to follow proper handling and storage procedures, such as using anti-static packaging and wrist straps. In the circuit, adding TVS diodes or ESD protection devices can help absorb voltage transients and protect the MOC3010SM from EOS and ESD events.
When using MOC3010SM in a high-frequency switching application, it's essential to consider the device's switching characteristics, such as its rise and fall times, and ensure that the circuit is designed to accommodate these characteristics. Additionally, the PCB layout should be optimized to minimize parasitic inductance and capacitance, and the device's power handling capability should be derated according to the frequency of operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOC3010SM Overview

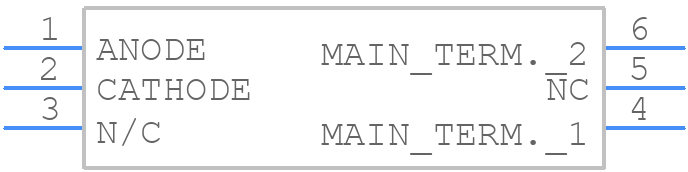

Use the download button to access the MOC3010SM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC30,
or try a keyword search, such as Optocoupler
