MOC3023 footprint, schematic symbol and 3D model by Lite-On

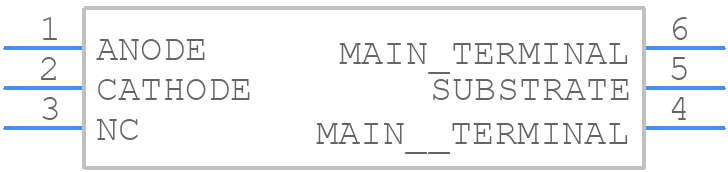

Symbol

PCB Footprints

3D Models

MOC3023 Details

The recommended operating temperature range for the MOC3023 is -40°C to 85°C.
To ensure proper isolation, make sure to use a sufficient creepage distance between the input and output pins, and use a suitable isolation material such as a ceramic or glass substrate.
The maximum allowable voltage for the MOC3023 is 400V peak.
During power-up and power-down sequences, the MOC3023's output may exhibit unpredictable behavior. To mitigate this, use a pull-up or pull-down resistor to ensure a defined output state.
While the MOC3023 is suitable for high-frequency applications, its performance may degrade above 100 kHz. For frequencies above 100 kHz, consider using a more specialized optocoupler or consulting with a design engineer.

Community Provided

System Verified

Community Approved

Use the download button to access the MOC3023 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MOC30, or try a keyword search, such as Optocoupler

If you searched for MOC3023, you might also be interested in these parts:

Showing 0 results

Image	Part Number	Model
	MOC3023 Isocom LTD Triac Output Optocoupler, 1-Element, 7500V Isolation
	MOC3023 QT Optoelectronics Triac Output Optocoupler, 1-Element, 5300V Isolation
	MOC3023 Harris Semiconductor Triac Output Optocoupler, 1-Element
	MOC3023.300 QT Optoelectronics Triac Output Optocoupler, 1-Element, 5300V Isolation
	TLP3023 Toshiba America Electronic Components Triac Output Optocoupler, 1-Element, 5000V Isolation
For a full list of alternate parts for MOC3023, check out Findchips.com
