MOC3023S-TA1 - Lite-On

Description: Triac & SCR Output Optocouplers Optocoupler TRIAC

Download MOC3023S-TA1 Model

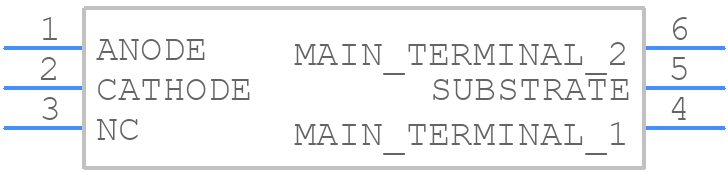

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MOC3023S-TA1 - Lite-On PCB footprint - Small Outline Packages - Small Outline Packages - MOC3023S-TA1-1
click to zoom
3D Models
MOC3023S-TA1 - Lite-On  - 3D model - Small Outline Packages - MOC3023S-TA1-1
click to zoom

MOC3023S-TA1 Details

  • Manufacturer Part Number:

    MOC3023S-TA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-6

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Input Trigger Current-Max:

    0.005 A

  • Input Trigger Current-Nom:

    5 mA

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Peak Off-state Voltage-Min:

    400 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    400 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)
