MOC3023SR2VM - onsemi

Description: UL1577, 4,170 VACRMS for 1 Minute; • Excellent IFT Stability - IR Emitting Diode Has Low Degradation• Peak Blocking Voltage; 400 V - MOC302XM• Safety and Regulatory Approvals; DIN EN/IEC60747-5-5); 250 V - MOC301XM

Download MOC3023SR2VM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

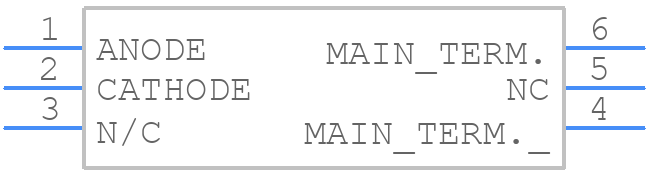

MOC3023SR2VM - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC3023SR2VM - onsemi PCB footprint - Other - Other - MOC3023SR2VM-5
click to zoom

MOC3023SR2VM Details

  • Manufacturer Part Number:

    MOC3023SR2VM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.06 A

  • Input Trigger Current-Max:

    0.005 A

  • Input Trigger Current-Nom:

    5 mA

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Peak Off-state Voltage-Min:

    400 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    400 V

  • Reverse Leakage Current-Max:

    0.0001 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC3023SR2VM Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC3023SR2VM is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary.
  • The maximum allowable voltage for the MOC3023SR2VM is 530V peak or 375V RMS.
  • To choose the correct current-limiting resistor, calculate the required resistance value based on the LED current and voltage drop across the resistor, ensuring that the resistor can handle the power dissipation.
  • While the MOC3023SR2VM is not optimized for high-frequency applications, it can be used up to 100 kHz. However, the optocoupler's performance may degrade at higher frequencies, and alternative solutions may be more suitable.
