Description:dv/dt of 2000 V/µs Typical, 1000 V/µs Guaranteed ; Simplifies Logic Control of 115 VAC power ; Peak Blocking Voltage – 250 V, MOC303XM – 400 V, MOC304XM ; Safety and Regulatory Approvals – UL1577, 4,170 VACRMS for 1 Minute – DIN EN/IEC60747-5-5 ; Zero Voltage Crossing
A good PCB layout for the MOC3033SR2M should ensure that the input and output circuits are separated to minimize coupling. The triac and LED pins should be connected as close as possible to the PCB to reduce lead inductance. Additionally, a ground plane should be used to reduce noise and electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it is essential to follow proper derating guidelines for the MOC3033SR2M. The device should be operated within its recommended temperature range, and the power dissipation should be limited to avoid overheating. Additionally, a heat sink can be used to dissipate heat and reduce the junction temperature.
The MOC3033SR2M can generate EMI due to the high dv/dt of the triac. To minimize EMI, it is recommended to use a snubber circuit to reduce the dv/dt, and to use a shielded cable for the output. Additionally, a common-mode choke can be used to filter out common-mode noise. Proper PCB layout and grounding techniques can also help to reduce EMI.
Yes, the MOC3033SR2M can be used in a dimmer circuit. However, it is essential to ensure that the triac is properly triggered and that the dimming frequency is within the recommended range. The dimming circuit should also be designed to avoid false triggering and to ensure that the triac is fully turned off during the off-state.
The MOC3033SR2M is a high-voltage device and requires proper safety precautions to ensure safe operation. It is essential to follow proper handling and storage procedures, and to ensure that the device is operated within its recommended voltage and current ratings. Additionally, proper isolation and insulation should be used to prevent electrical shock and to ensure that the device is not damaged by overvoltage or overcurrent.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOC3033SR2M Overview

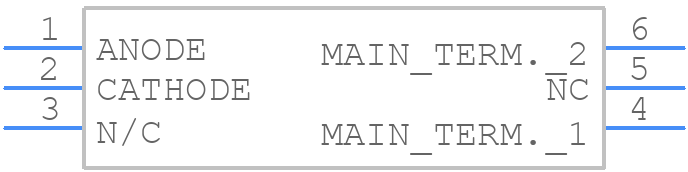

Use the download button to access the MOC3033SR2M schematic symbol and PCB footprint.
