Part Image

MOC3041M - onsemi

Description: Peak Blocking Voltage – 250 V, MOC303XM – 400 V, MOC304XM ; Simplifies Logic Control of 115 VAC power ; Zero Voltage Crossing ; dv/dt of 2000 V/µs Typical, 1000 V/µs Guaranteed ; Safety and Regulatory Approvals – UL1577, 4,170 VACRMS for 1 Minute – DIN EN/IEC60747-5-5

Download MOC3041M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

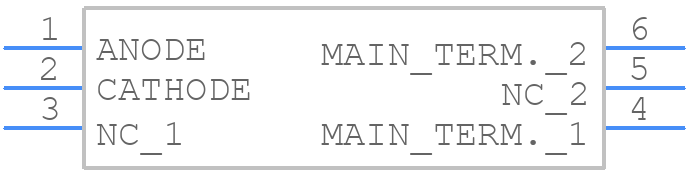

Symbol
MOC3041M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC3041M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 6-Pin DIP Thru Hole Case 730A-04_1
click to zoom
3D Models
MOC3041M - onsemi - 3D model - Dual-In-Line Packages - 6-Pin DIP Thru Hole Case 730A-04_1
click to zoom

MOC3041M Details

  • Manufacturer Part Number:

    MOC3041M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.06 A

  • Input Trigger Current-Max:

    0.015 A

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

  • Packing Method:

    TUBE

  • Peak Off-state Voltage-Min:

    400 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    400 V

  • Reverse Leakage Current-Max:

    0.015 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC3041M Frequently Asked Questions (FAQs)

  • The maximum allowable voltage that can be applied to the input pins is 5V. Exceeding this voltage can cause damage to the device.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current handling capability and ensure good thermal management, such as using a heat sink or providing adequate airflow.
  • The recommended input current for the MOC3041M is 5mA to 10mA. Operating the device outside of this range may affect its performance and reliability.
  • The MOC3041M is not suitable for high-frequency applications due to its limited bandwidth. For high-frequency applications, consider using a different optocoupler with a higher bandwidth rating.
  • To protect the MOC3041M from electrical noise and EMI, use proper PCB layout techniques, such as separating analog and digital circuits, using shielding, and adding noise filters or ferrite beads to the input lines.
