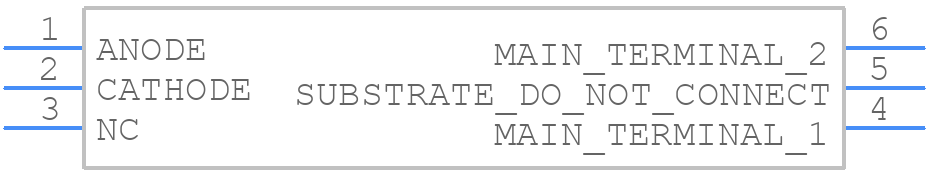

MOC3043 - Motorola

MOC3043 Frequently Asked Questions (FAQs)

• What is the maximum operating temperature range for the MOC3043?
  The MOC3043 can operate safely between -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance.
• How do I ensure the MOC3043 is properly isolated from the power circuit?
  To ensure proper isolation, use a suitable optocoupler socket or a PCB layout that maintains a minimum creepage distance of 8mm between the input and output pins, and follow proper PCB design guidelines for isolation.
• What is the recommended input resistor value for the MOC3043?
  The recommended input resistor value is between 270Ω to 1kΩ, depending on the specific application and input voltage. A higher value can reduce power consumption but may affect switching speed.
• Can I use the MOC3043 with a DC input voltage higher than 20V?
  No, the MOC3043 is not designed to handle input voltages above 20V. Exceeding this voltage may damage the device or affect its reliability.
• How do I troubleshoot issues with the MOC3043, such as erratic switching or failure to switch?
  Check the input voltage, input resistor value, and PCB layout for proper isolation. Verify that the output load is within the recommended specifications, and ensure that the device is not overheating.
