MOC3051M - onsemi

Description: Excellent IFT Stability—IR Emitting Diode Has Low Degradation; Safety and Regulatory Approvals; 600 V Peak Blocking Voltage; DIN EN/IEC60747-5-5; UL1577, 4,170 VACRMS for 1 Minute

Download MOC3051M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

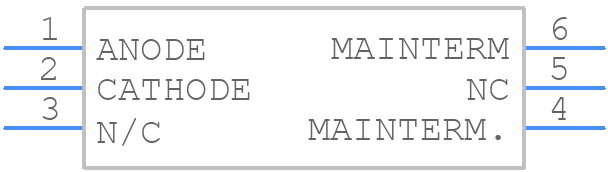

MOC3051M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC3051M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 6-Pin DIP
click to zoom
3D Models
MOC3051M - onsemi - 3D model - Dual-In-Line Packages - 6-Pin DIP
click to zoom

MOC3051M Details

  • Manufacturer Part Number:

    MOC3051M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.06 A

  • Input Trigger Current-Max:

    0.015 A

  • Input Trigger Current-Nom:

    15 mA

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Voltage-Max:

    2.5 V

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.0001 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC3051M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC3051M is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary.
  • The maximum allowable voltage for the MOC3051M is 80V, but it's recommended to operate within the specified voltage range to ensure reliable operation.
  • To choose the correct current-limiting resistor, calculate the required resistance value based on the input voltage, LED current, and desired output current. A general guideline is to use a resistor value between 1 kΩ and 10 kΩ.
  • The typical response time of the MOC3051M is around 1-2 μs, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MOC3051M Overview

Use the download button to access the MOC3051M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC30, or try a keyword search, such as Optocoupler
