MOC3053SM - onsemi

Description: Excellent IFT Stability—IR Emitting Diode Has Low Degradation; 600 V Peak Blocking Voltage; Safety and Regulatory Approvals; UL1577, 4,170 VACRMS for 1 Minute; DIN EN/IEC60747-5-5

Download MOC3053SM Model

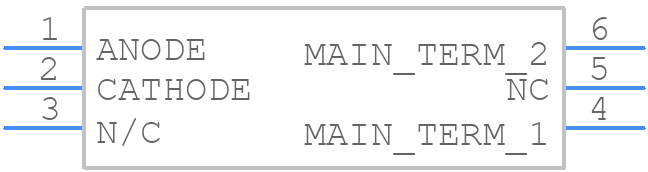

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MOC3053SM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MOC3053SM
click to zoom

MOC3053SM Details

  • Manufacturer Part Number:

    MOC3053SM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.06 A

  • Input Trigger Current-Max:

    0.006 A

  • Isolation Voltage-Max:

    4170 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Voltage-Max:

    2.5 V

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.0001 A

  • Surface Mount:

    YES

MOC3053SM Frequently Asked Questions (FAQs)

  • A good PCB layout for the MOC3053SM involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper isolation, use a suitable isolation transformer, and follow the recommended creepage and clearance distances between the primary and secondary circuits. Additionally, ensure that the PCB layout and component placement meet the necessary safety standards.
  • The maximum allowable voltage drop across the MOC3053SM is typically around 1.5V to 2V, depending on the specific application and operating conditions. Exceeding this voltage drop may affect the device's reliability and performance.
  • The MOC3053SM is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure that the device is properly heat-sinked and that the operating temperature is within the recommended range for optimal performance.
  • To troubleshoot issues with the MOC3053SM, check the input and output voltages, ensure proper isolation, and verify that the device is properly connected and configured. Use an oscilloscope to analyze the input and output waveforms, and consult the datasheet and application notes for guidance.
