MOC3061M - onsemi

Description: UL1577, 4,170 VACRMS for 1 Minute; Safety and Regulatory Approvals; DIN EN/IEC60747-5-5; 600 V/μs (MOC306xM); 1000 V/μs (MOC316xM); Zero Voltage Crossing to Minimize Conducted and Radiated Line Noise; Superior Static dv/dt; 600 V Peak Blocking Voltage; Simplifies Logic Control of 115/240 VAC Power

Download MOC3061M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

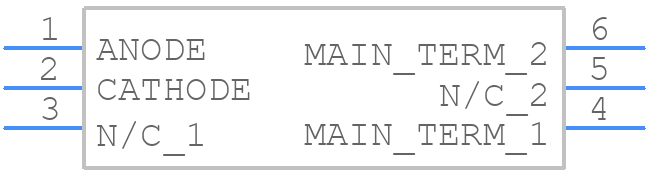

Symbol
MOC3061M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC3061M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MOC3061M-1
click to zoom
3D Models
MOC3061M - onsemi - 3D model - Dual-In-Line Packages - MOC3061M-1
click to zoom

MOC3061M Details

  • Manufacturer Part Number:

    MOC3061M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.06 A

  • Input Trigger Current-Max:

    0.015 A

  • Input Trigger Current-Nom:

    15 mA

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.0001 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC3061M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC3061M is -40°C to 100°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage across the input pins of the MOC3061M is 5V, and it is recommended to keep the input voltage below 4.5V to ensure reliable operation.
  • The correct current-limiting resistor for the MOC3061M can be calculated using the formula: R = (Vcc - 1.4V) / If, where Vcc is the supply voltage, and If is the desired forward current.
  • The typical propagation delay time of the MOC3061M is around 1-2 microseconds, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MOC3061M Overview

Use the download button to access the MOC3061M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC30, or try a keyword search, such as Optocoupler
