MOC3062M - onsemi

Description: UL1577, 4,170 VACRMS for 1 Minute; 1000 V/μs (MOC316xM); Simplifies Logic Control of 115/240 VAC Power; Zero Voltage Crossing to Minimize Conducted and Radiated Line Noise; 600 V/μs (MOC306xM); DIN EN/IEC60747-5-5; Safety and Regulatory Approvals; Superior Static dv/dt; 600 V Peak Blocking Voltage

Download MOC3062M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

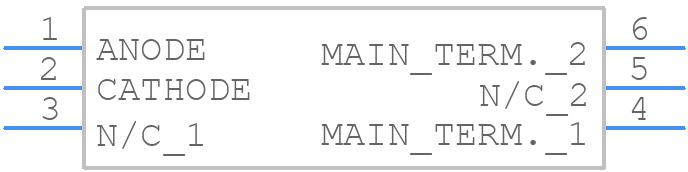

MOC3062M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC3062M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MOC3062M
click to zoom
3D Models
MOC3062M - onsemi - 3D model - Dual-In-Line Packages - MOC3062M
click to zoom

MOC3062M Details

  • Manufacturer Part Number:

    MOC3062M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.06 A

  • Input Trigger Current-Max:

    0.01 A

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

  • Packing Method:

    TUBE

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.0001 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed
