MOC3063S-TA1 - Lite-On

Description: Optocoupler Triac Output, 600V, SMD6 Lite-On MOC3063S-TA1 Phototriac Output Optocoupler, Surface Mount, 6-Pin PDIP

Download MOC3063S-TA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

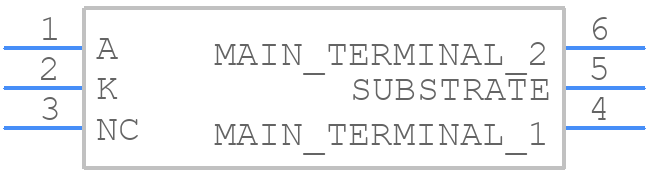

MOC3063S-TA1 - Lite-On - PCB symbol
click to zoom
PCB Footprints
MOC3063S-TA1 - Lite-On PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 4N35S
click to zoom
3D Models
MOC3063S-TA1 - Lite-On - 3D model - SOT23 (6-Pin) - 4N35S
click to zoom

MOC3063S-TA1 Details

  • Manufacturer Part Number:

    MOC3063S-TA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT, DIP-6

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    8

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Input Trigger Current-Max:

    0.005 A

  • Input Trigger Current-Nom:

    5 mA

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

  • Packing Method:

    TR

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

MOC3063S-TA1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC3063S-TA1 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the MOC3063S-TA1 is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • To handle ESD protection for the MOC3063S-TA1, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
  • The recommended storage condition for the MOC3063S-TA1 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 30°C and humidity below 60%.
