MOC3063SR2M - onsemi

Description: UL1577, 4,170 VACRMS for 1 Minute; Safety and Regulatory Approvals; 1000 V/μs (MOC316xM); 600 V/μs (MOC306xM); Superior Static dv/dt; DIN EN/IEC60747-5-5; Zero Voltage Crossing to Minimize Conducted and Radiated Line Noise; 600 V Peak Blocking Voltage; Simplifies Logic Control of 115/240 VAC Power

Download MOC3063SR2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

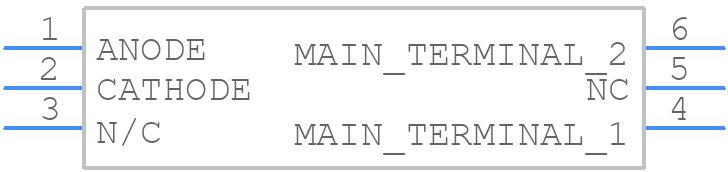

Symbol
MOC3063SR2M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC3063SR2M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP6 8.51x6.35, 2.54P CASE 646BY ISSUE O
click to zoom
3D Models
MOC3063SR2M - onsemi - 3D model - Small Outline Packages - PDIP6 8.51x6.35, 2.54P CASE 646BY ISSUE O
click to zoom

MOC3063SR2M Details

  • Manufacturer Part Number:

    MOC3063SR2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    SMT-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.5

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.06 A

  • Input Trigger Current-Max:

    0.005 A

  • Isolation Voltage-Max:

    4170 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

  • Packing Method:

    TR

  • Peak Off-state Voltage-Min:

    600 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    600 V

  • Reverse Leakage Current-Max:

    0.0001 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC3063SR2M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC3063SR2M is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary.
  • The maximum allowable voltage for the MOC3063SR2M is 530V peak or 375V RMS.
  • To choose the correct current-limiting resistor, calculate the required resistance value based on the LED forward voltage, desired current, and supply voltage. A general guideline is to use a resistor value that limits the current to 10-20mA.
  • The typical response time of the MOC3063SR2M is around 1-2μs, but this can vary depending on the specific application and circuit design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MOC3063SR2M Overview

Use the download button to access the MOC3063SR2M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC30, or try a keyword search, such as Optocoupler
