A good PCB layout for MOC3072M should ensure minimal lead lengths, separate grounds for analog and digital circuits, and a solid ground plane to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate analog ground plane is recommended.
To ensure reliable operation of MOC3072M in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, derating the device's power handling capability according to the temperature derating curve in the datasheet is recommended.
When using MOC3072M in a TRIAC-based dimmer circuit, it's essential to ensure that the TRIAC's gate current is sufficient to trigger the device reliably. Additionally, the circuit should be designed to handle the high dv/dt and di/dt stresses associated with TRIAC-based dimming. A snubber circuit may be required to reduce EMI and ensure reliable operation.
To protect MOC3072M from EOS and ESD, it's essential to follow proper handling and storage procedures, such as using anti-static packaging and wrist straps. In the circuit, TVS diodes or other overvoltage protection devices can be used to clamp voltage transients, and a fuse or PTC can be used to limit current surges.
When using MOC3072M in a high-frequency switching application, it's essential to consider the device's switching characteristics, such as its turn-on and turn-off times, and ensure that the circuit is designed to handle the associated high-frequency losses and EMI. A proper layout and decoupling scheme are critical to minimize parasitic inductances and capacitances.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOC3072M Overview

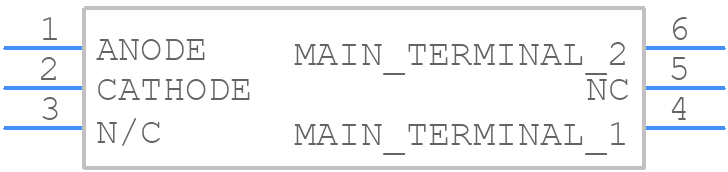

Use the download button to access the MOC3072M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC30,
or try a keyword search, such as Optocoupler
