A good PCB layout for MOC3073M involves keeping the input and output traces separate, using a ground plane, and minimizing lead lengths. It's also recommended to use a 0.1uF capacitor between the triac's gate and cathode to reduce electromagnetic interference (EMI).
To ensure reliable operation of MOC3073M in high-temperature environments, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive interface material, and keeping the device within its recommended operating temperature range (up to 110°C).
When selecting a gate resistor for MOC3073M, consider the triac's gate trigger current, the voltage supply, and the desired switching frequency. A general rule of thumb is to choose a gate resistor that limits the gate current to 10-20mA. It's also important to ensure the resistor is rated for the expected power dissipation.
To protect MOC3073M from EOS and ESD, use proper handling and storage procedures, such as using anti-static bags and wrist straps. In the circuit, consider adding transient voltage suppressors (TVS) or metal-oxide varistors (MOVs) to absorb voltage spikes, and use a fuse or current limiter to prevent overcurrent conditions.
MOC3073M's dV/dt rating (10V/μs) indicates the maximum rate of voltage change that the device can withstand without false triggering. To ensure reliable operation, ensure that the voltage across the triac does not exceed this rating, and consider adding a snubber circuit to reduce voltage transients.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOC3073M Overview

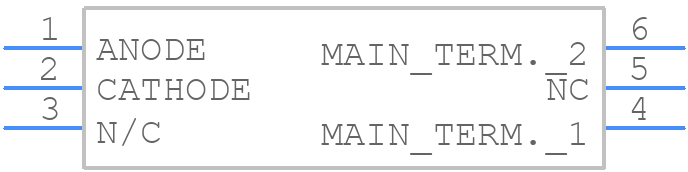

Use the download button to access the MOC3073M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC30,
or try a keyword search, such as Optocoupler
