A good PCB layout for MOC3073SVM involves keeping the input and output traces separate, using a ground plane, and minimizing the distance between the optocoupler and the LED. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
The maximum allowable voltage for the MOC3073SVM's input LED is 5.5V. Exceeding this voltage can damage the device.
While MOC3073SVM is suitable for high-frequency applications, its bandwidth is limited to around 10 kHz. For higher frequency applications, consider using a different optocoupler with a higher bandwidth rating.
To troubleshoot issues with MOC3073SVM, start by verifying the input voltage and current, checking the PCB layout for any errors, and ensuring that the device is properly soldered. Use an oscilloscope to measure the output waveform and verify that it matches the expected behavior.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOC3073SVM Overview

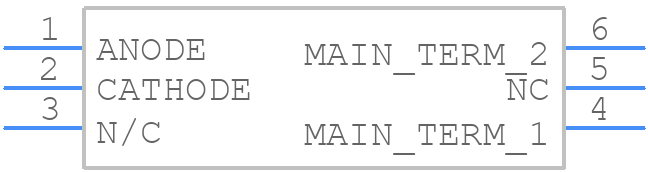

Use the download button to access the MOC3073SVM schematic symbol and PCB footprint.
