A good PCB layout for MOC3081VM involves keeping the input and output circuits separate, using a ground plane, and minimizing lead lengths. The triac and LED pins should be as close as possible to the PCB tracks to reduce electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device within its recommended operating temperature range.
When using MOC3081VM in a high-frequency switching application, consider the device's switching time, dv/dt, and di/dt ratings. Ensure that the circuit is designed to handle the resulting electromagnetic interference (EMI) and radio-frequency interference (RFI).
To protect MOC3081VM from EOS and ESD, use proper handling and storage procedures, such as using anti-static bags and wrist straps. In the circuit, use voltage clamping devices, such as transient voltage suppressors (TVS), and ensure that the device is operated within its recommended voltage and current ratings.
When using MOC3081VM in a circuit with a high inrush current, consider the device's peak current rating and ensure that the circuit is designed to handle the resulting voltage drop and power dissipation. A suitable snubber circuit may be required to limit the inrush current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOC3081VM Overview

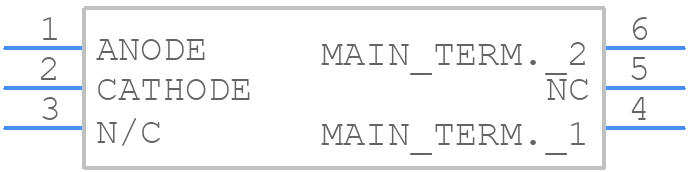

Use the download button to access the MOC3081VM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOC30,
or try a keyword search, such as Optocoupler
