MOC3083S-TA1 - Lite-On

Description: Triac & SCR Output Optocouplers Optocoupler Photrans Output No Base Conn

Download MOC3083S-TA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

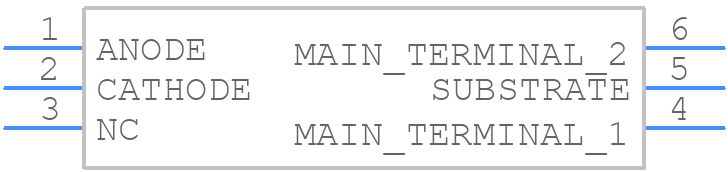

Symbol
MOC3083S-TA1 - Lite-On - PCB symbol
click to zoom
PCB Footprints
MOC3083S-TA1 - Lite-On PCB footprint - Other - Other - MOC3083S-TA1-2
click to zoom

MOC3083S-TA1 Details

  • Manufacturer Part Number:

    MOC3083S-TA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Input Trigger Current-Max:

    0.005 A

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • On-State Voltage-Max:

    3 V

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIAC OUTPUT OPTOCOUPLER WITH ZERO CRSVR

  • Packing Method:

    TR

  • Peak Off-state Voltage-Min:

    800 V

  • Peak Surge Current:

    1 A

  • Repetitive Peak Off-state Voltage:

    800 V

  • Reverse Leakage Current-Max:

    0.00001 A

  • Surface Mount:

    YES

MOC3083S-TA1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC3083S-TA1 is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the MOC3083S-TA1 is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
  • The correct resistor value can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired LED current.
  • The internal Zener diode is used to protect the device from voltage transients and to provide a voltage clamp function to prevent overvoltage damage.
