Description:Minimum 80V (MOC8050M); I/O interface for computers; Solid state relays; High BVCEO; Interfacing and coupling systems of different potentials and impedances; Programmable controllers; No base connection for improved noise immunity; Minimum 500% (MOC8050M); Portable electronics; Underwriters Laboratory (UL) recognizedFile #E90700, Volume 2; IEC 60747-5-2 approved (ordering option V); 500%; Appliances, measuring instruments; Minimum 1,000% (MOC8021M); Minimum 50V (MOC8021M); High current transfer ratio:
A good PCB layout for MOC8021SM should ensure that the input and output circuits are separated as much as possible to minimize coupling. The LED and photodiode should be placed close together, and the tracks should be as short as possible to reduce noise and electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range of -40°C to 110°C. Additionally, ensure that the device is properly derated, and the power dissipation is within the specified limits. It's also crucial to use a suitable heat sink and thermal interface material to maintain a low junction temperature.
The maximum allowable voltage for the MOC8021SM is 80V, which is the maximum rating for the output voltage. However, it's recommended to operate the device at a voltage below 60V to ensure reliable operation and to prevent damage from voltage spikes or transients.
To troubleshoot issues with the MOC8021SM, start by checking the input voltage and current, ensuring they are within the specified ranges. Verify that the LED is properly driven and that the photodiode is receiving sufficient light. Check for any signs of overheating, and ensure that the device is properly soldered and mounted. If the issue persists, consult the datasheet and application notes for further guidance.
Yes, the MOC8021SM can be used in high-frequency applications, such as switching power supplies, but it's essential to ensure that the device is properly driven and that the frequency of operation is within the specified range. The device has a typical switching frequency of 100 kHz, but it can operate up to 500 kHz. However, the maximum frequency may vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOC8021SM Overview

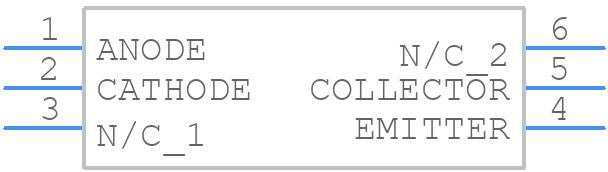

Use the download button to access the MOC8021SM schematic symbol and PCB footprint.
