MOC8204M - onsemi

Description: Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-DIP

Download MOC8204M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

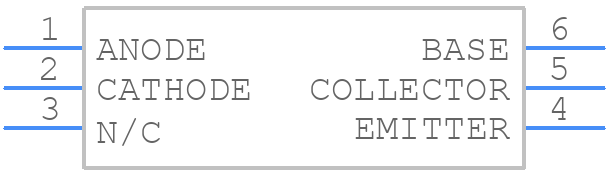

Symbol
MOC8204M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC8204M - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P 1
click to zoom
3D Models
MOC8204M - onsemi - 3D model - Dual-In-Line Packages - PDIP6 8.51x6.35, 2.54P 1
click to zoom

MOC8204M Details

  • Manufacturer Part Number:

    MOC8204M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Package Description:

    DIP-6

  • Manufacturer Package Code:

    646BX

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    400 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.08 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.26 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC8204M Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC8204M is -40°C to 100°C.
  • To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
  • The maximum allowable voltage for the MOC8204M is 80 V, but it is recommended to operate the device at a voltage below 60 V to ensure reliable operation.
  • The correct resistor value can be calculated using the formula R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired LED current.
  • The typical propagation delay time for the MOC8204M is around 1-2 μs, but this can vary depending on the specific application and operating conditions.
