MOC8204SM - onsemi

Description: MOC8204M, BVCEO= 400 V; H11D1M, BVCEO= 300 V; H11D3M, BVCEO= 200 V; High Voltage:; UL1577, 4,170 VACRMS for 1 Minute; Safety and Regulatory Approvals:; DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage

Download MOC8204SM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

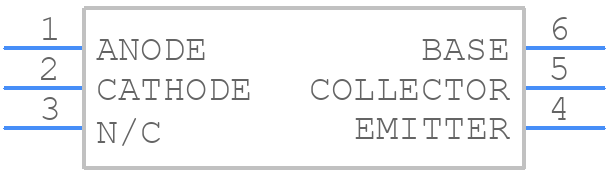

MOC8204SM - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC8204SM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SMT 6-Pin (Lead-Bend)
click to zoom

MOC8204SM Details

  • Manufacturer Part Number:

    MOC8204SM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    400 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.08 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.26 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC8204SM Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MOC8204SM is -40°C to 100°C.
  • To ensure reliability, it's recommended to derate the device's current and voltage ratings at high temperatures. Consult the datasheet for specific derating guidelines.
  • The maximum allowable voltage for the MOC8204SM is 80 Vrms or 110 Vdc, whichever is less.
  • Choose a current-limiting resistor that ensures the LED current is within the recommended range (5-10 mA) and does not exceed the maximum allowable current (50 mA).
  • The typical propagation delay time for the MOC8204SM is around 1-2 μs, but this can vary depending on the specific application and operating conditions.
