MOC8204SR2M - onsemi

Description: MOC8204M, BVCEO= 400 V; H11D1M, BVCEO= 300 V; H11D3M, BVCEO= 200 V; High Voltage:; UL1577, 4,170 VACRMS for 1 Minute; Safety and Regulatory Approvals:; DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage

Download MOC8204SR2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

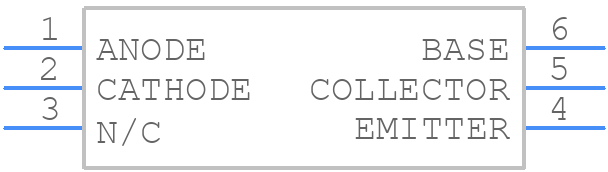

Symbol
MOC8204SR2M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOC8204SR2M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - PDIP6 8.51x6.35, 2.54P CASE 646BY ISSUE A_2023-2
click to zoom
3D Models
MOC8204SR2M - onsemi - 3D model - Small Outline Packages - PDIP6 8.51x6.35, 2.54P CASE 646BY ISSUE A_2023-2
click to zoom

MOC8204SR2M Details

  • Manufacturer Part Number:

    MOC8204SR2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP-6

  • Manufacturer Package Code:

    646BY

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    400 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    20%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.08 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.26 W

  • Response Time-Max:

    0.000005 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOC8204SR2M Frequently Asked Questions (FAQs)

  • A good PCB layout for the MOC8204SR2M involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
  • To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 3.3V to 5V.
  • The maximum allowable power dissipation for the MOC8204SR2M is 250mW. Exceeding this limit can cause the device to overheat and potentially fail.
  • To protect the MOC8204SR2M from ESD, handle the device by the body or use an anti-static wrist strap, and ensure that the PCB is designed with ESD protection in mind, such as using ESD-protection diodes or resistors.
  • The recommended operating temperature range for the MOC8204SR2M is -40°C to 125°C. Operating the device outside of this range can affect its performance and reliability.
