MOCD207D2M - onsemi

Description: MOCD217M; MOCD207M, MOCD208M; Minimum BVCEO of 70 V Guaranteed; UL1577, 2,500 VACRMS for 1 Minute; Minimum BVCEO of 30 V Guaranteed; Closely Matched Current Transfer Ratios; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; MOCD211M, MOCD213M, MOCD217M; Safety and Regulatory Approvals:; Low LED Input Current Required for Easier Logic Interfacing; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing

Download MOCD207D2M Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MOCD207D2M model

Email notifications will be applied after download.

Send part feedback

Symbol

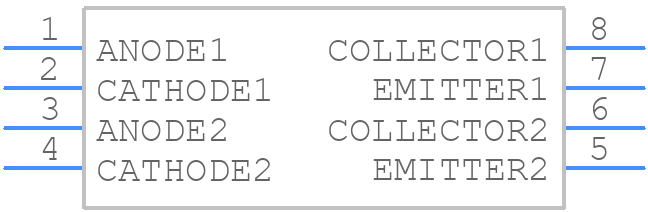

MOCD207D2M - onsemi - PCB symbol

PCB Footprints

MOCD207D2M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - so 8pin+

3D Models

MOCD207D2M - onsemi - 3D model - Small Outline Packages - so 8pin+

Datasheet Download Datasheet
Stock & Prices Price & Stock for MOCD207D2M
Part Number MOCD207D2M
Manufacturer onsemi
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - so 8pin+
Released Date Feb 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MOCD207D2M Details

Manufacturer Part Number:
MOCD207D2M
Manufacturer:
onsemi

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MOCD207D2M Overview

Use the download button to access the MOCD207D2M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MOCD2, or try a keyword search, such as Optocoupler
