Description:MOCD217M; MOCD207M, MOCD208M; Minimum BVCEO of 70 V Guaranteed; UL1577, 2,500 VACRMS for 1 Minute; Minimum BVCEO of 30 V Guaranteed; Closely Matched Current Transfer Ratios; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; MOCD211M, MOCD213M, MOCD217M; Safety and Regulatory Approvals:; Low LED Input Current Required for Easier Logic Interfacing; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing
A good PCB layout for the MOCD207M involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, use a voltage regulator to maintain a stable voltage supply, and consider adding decoupling capacitors to filter out noise.
The MOCD207M has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow around the device, use a heat sink if necessary, and avoid overheating the device during operation.
To troubleshoot issues with the MOCD207M, start by checking the power supply voltage and current, then verify the input and output signals. Use an oscilloscope to analyze the waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the MOCD207M is sensitive to electrostatic discharge (ESD). To prevent ESD damage, handle the device by the body, use an ESD wrist strap or mat, and ensure the PCB is properly grounded. Follow proper ESD handling procedures during assembly and testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOCD207M Overview

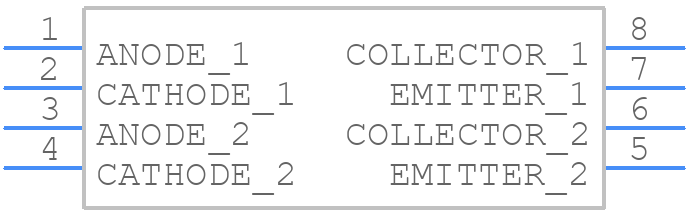

Use the download button to access the MOCD207M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOCD2,
or try a keyword search, such as Optocoupler
