MOCD207R2M - onsemi

Description: MOCD217M; MOCD207M, MOCD208M; Minimum BVCEO of 70 V Guaranteed; UL1577, 2,500 VACRMS for 1 Minute; Minimum BVCEO of 30 V Guaranteed; Closely Matched Current Transfer Ratios; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; MOCD211M, MOCD213M, MOCD217M; Safety and Regulatory Approvals:; Low LED Input Current Required for Easier Logic Interfacing; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing

Download MOCD207R2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

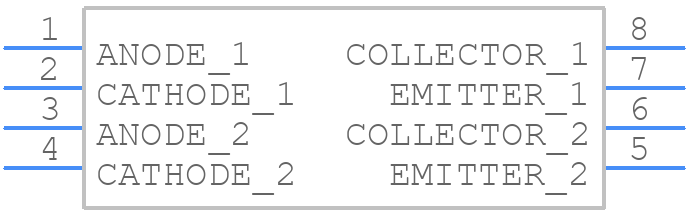

Symbol
MOCD207R2M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOCD207R2M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O (1)
click to zoom
3D Models
MOCD207R2M - onsemi - 3D model - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O (1)
click to zoom

MOCD207R2M Details

  • Manufacturer Part Number:

    MOCD207R2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    34%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.55 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000032 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOCD207R2M Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure proper thermal management, use a heat sink if necessary, and follow the recommended operating conditions and derating guidelines to ensure reliable operation across the full temperature range.
  • The MOCD207R2M has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and installation to prevent damage.
  • Yes, the MOCD207R2M is AEC-Q101 qualified and suitable for high-reliability and automotive applications, but ensure you follow the recommended operating conditions and guidelines for these applications.
  • Consult the onsemi application note for troubleshooting guidelines, and consider using a logic analyzer or oscilloscope to debug the issue. Also, ensure proper PCB design and layout, and verify that the device is operated within the recommended specifications.
