MOCD207R2VM - onsemi

Description: MOCD217M; MOCD207M, MOCD208M; Minimum BVCEO of 70 V Guaranteed; UL1577, 2,500 VACRMS for 1 Minute; Minimum BVCEO of 30 V Guaranteed; Closely Matched Current Transfer Ratios; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; MOCD211M, MOCD213M, MOCD217M; Safety and Regulatory Approvals:; Low LED Input Current Required for Easier Logic Interfacing; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing

Download MOCD207R2VM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

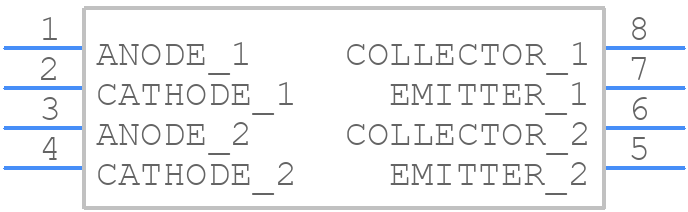

MOCD207R2VM - onsemi - PCB symbol
click to zoom
PCB Footprints
MOCD207R2VM - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O
click to zoom
3D Models
MOCD207R2VM - onsemi - 3D model - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O
click to zoom

MOCD207R2VM Details

  • Manufacturer Part Number:

    MOCD207R2VM

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    34%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.55 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000032 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOCD207R2VM Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2 oz copper thickness is recommended.
  • Ensure proper thermal management, use a heat sink if necessary, and follow the recommended PCB layout guidelines. Also, consider the device's power dissipation and thermal resistance.
  • Use a common-mode choke or ferrite bead on the input lines, and consider adding a shield or metal enclosure to reduce electromagnetic radiation. Follow proper PCB layout and grounding techniques.
  • Use a voltage regulator or overvoltage protection circuit, and consider adding a current-limiting resistor or fuse to prevent overcurrent conditions.
  • Store the devices in their original packaging, away from direct sunlight and moisture. Handle the devices by the body, avoiding touching the leads or pins to prevent electrostatic discharge.
