Description:Minimum BVCEO of 30 V Guaranteed; MOCD207M, MOCD208M; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; MOCD211M, MOCD213M, MOCD217M; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; MOCD217M; Low LED Input Current Required for Easier Logic Interfacing; Closely Matched Current Transfer Ratios; Minimum BVCEO of 70 V Guaranteed; Safety and Regulatory Approvals:; UL1577, 2,500 VACRMS for 1 Minute
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the package to allow heat to escape.
Ensure the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Implement proper thermal management, such as heat sinks or fans, to maintain a safe operating temperature. Monitor the device's thermal status using the thermal monitoring pin (if available).
The MOCD208R2M has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the PCB is properly grounded. Avoid touching the device's pins or exposing it to static electricity.
Yes, the MOCD208R2M is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q101, a standard for automotive-grade semiconductor components. However, ensure you follow the recommended operating conditions, and consult with onsemi's application engineers for specific guidance.
Consult the onsemi application note for troubleshooting guidelines. Check the device's operating conditions, power supply, and PCB layout. Verify that the device is properly soldered and that there are no signs of physical damage. If issues persist, contact onsemi's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOCD208R2M Overview

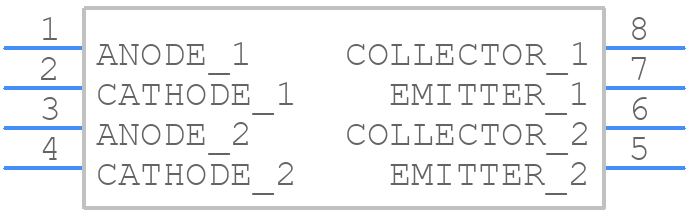

Use the download button to access the MOCD208R2M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOCD2,
or try a keyword search, such as Optocoupler
