MOCD211R2M - onsemi

Description: Closely Matched Current Transfer Ratios; MOCD217M; Minimum BVCEO of 70 V Guaranteed; Minimum BVCEO of 30 V Guaranteed; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; UL1577, 2,500 VACRMS for 1 Minute; Safety and Regulatory Approvals:; MOCD207M, MOCD208M; MOCD211M, MOCD213M, MOCD217M; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; Low LED Input Current Required for Easier Logic Interfacing

Download MOCD211R2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

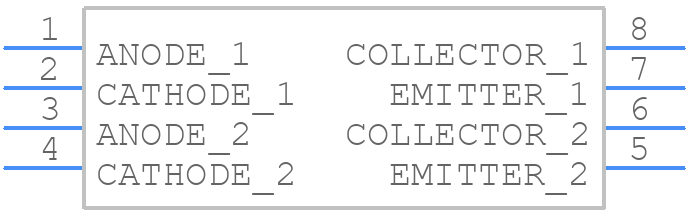

MOCD211R2M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOCD211R2M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O
click to zoom
3D Models
MOCD211R2M - onsemi - 3D model - Small Outline Packages - SOIC8 CASE 751DZ ISSUE O
click to zoom

MOCD211R2M Details

  • Manufacturer Part Number:

    MOCD211R2M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    20%

  • Current Transfer Ratio-Nom:

    20%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.5 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TR

  • Power Dissipation-Max:

    0.25 W

  • Response Time-Max:

    0.0000032 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

MOCD211R2M Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the package to connect the thermal pad to the copper area.
  • Ensure that the device is operated within the recommended temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's current handling capability at high temperatures.
  • A soldering profile with a peak temperature of 260°C and a dwell time of 30-60 seconds is recommended. The device should be soldered using a no-clean or water-soluble flux.
  • Handle the device in an ESD-protected environment. Use ESD-protective packaging and wrist straps. Ground all equipment and tools to prevent static buildup. Avoid touching the device's pins or handling it in a way that could generate static electricity.
  • Store the device in its original packaging or in a dry, ESD-protected environment. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures. Handle the device by the body, not the leads, to prevent damage.
