MOCD213M - onsemi

Description: Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; MOCD217M; Low LED Input Current Required for Easier Logic Interfacing; Safety and Regulatory Approvals:; Minimum BVCEO of 70 V Guaranteed; MOCD211M, MOCD213M, MOCD217M; Closely Matched Current Transfer Ratios; MOCD207M, MOCD208M; Minimum BVCEO of 30 V Guaranteed; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; UL1577, 2,500 VACRMS for 1 Minute

Download MOCD213M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

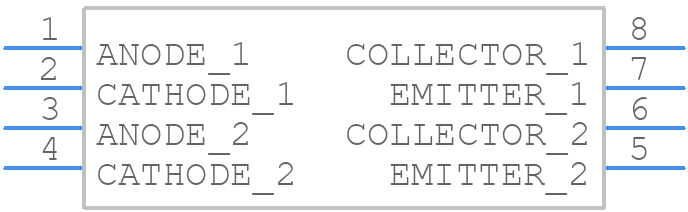

MOCD213M - onsemi - PCB symbol
click to zoom
PCB Footprints
MOCD213M - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MOCD213M-1
click to zoom
3D Models
MOCD213M - onsemi - 3D model - Small Outline Packages - MOCD213M-1
click to zoom

MOCD213M Details

  • Manufacturer Part Number:

    MOCD213M

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751DZ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Min:

    100%

  • Current Transfer Ratio-Nom:

    100%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.55 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • On-State Current-Max:

    0.15 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.0000032 s

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN
