Description:Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; MOCD217M; Low LED Input Current Required for Easier Logic Interfacing; Safety and Regulatory Approvals:; Minimum BVCEO of 70 V Guaranteed; MOCD211M, MOCD213M, MOCD217M; Closely Matched Current Transfer Ratios; MOCD207M, MOCD208M; Minimum BVCEO of 30 V Guaranteed; DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; UL1577, 2,500 VACRMS for 1 Minute
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to an internal copper plane or a heat sink.
Ensure the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Implement a thermal management system, such as a heat sink or fan, to maintain a safe operating temperature. Monitor the device's thermal resistance (RθJA) and adjust the system design accordingly.
The device has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the PCB is properly grounded. Avoid touching the device's pins or handling the device in a way that could generate static electricity.
Yes, the MOCD213R2VM is qualified for automotive and high-reliability applications. It meets the AEC-Q101 qualification standard and is designed to operate in harsh environments. However, ensure you follow the recommended operating conditions and design guidelines to ensure reliable operation.
Start by verifying the device is properly powered and configured. Check the input voltage, current, and temperature. Use a oscilloscope to monitor the device's output and input signals. Consult the datasheet and application notes for troubleshooting guides and FAQs. If issues persist, contact onsemi's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOCD213R2VM Overview

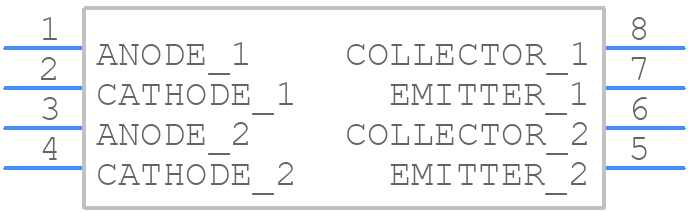

Use the download button to access the MOCD213R2VM schematic symbol, PCB footprint, and 3D model.
