MOCD217M footprint, schematic symbol and 3D model by onsemi

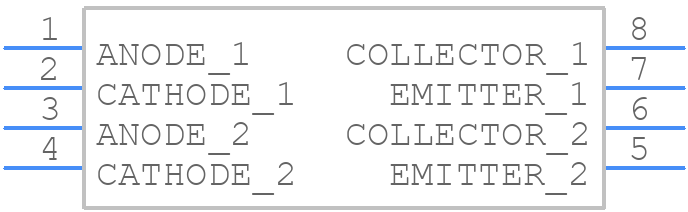

Symbol

PCB Footprints

3D Models

MOCD217M Details

A good PCB layout for the MOCD217M involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces to reduce electromagnetic interference (EMI).
To ensure proper biasing, connect the VCC pin to a stable voltage source (e.g., 5V or 12V), and connect the GND pin to a solid ground plane. Also, ensure the input voltage is within the recommended range (0.8V to 5.5V).
The maximum allowable voltage on the input pins of the MOCD217M is 5.5V. Exceeding this voltage may damage the device.
The MOCD217M is rated for operation up to 125°C. However, it's essential to ensure proper heat dissipation and consider the device's power dissipation (PD) when operating in high-temperature environments.
To prevent electrostatic discharge (ESD) damage, handle the MOCD217M by the body or use an anti-static wrist strap. Also, ensure the PCB design includes ESD protection components, such as TVS diodes or ESD arrays.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the MOCD217M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MOCD2, or try a keyword search, such as Optocoupler
