Description:DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; Closely Matched Current Transfer Ratios; MOCD217M; MOCD207M, MOCD208M; UL1577, 2,500 VACRMS for 1 Minute; Safety and Regulatory Approvals:; Minimum BVCEO of 30 V Guaranteed; MOCD211M, MOCD213M, MOCD217M; Minimum BVCEO of 70 V Guaranteed; Low LED Input Current Required for Easier Logic Interfacing; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing
A good PCB layout for the MOCD217R2M involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 150°C) and consider the thermal resistance of the package (RθJA = 40°C/W). Proper heat sinking, thermal management, and derating the device's power handling at high temperatures are also crucial.
The MOCD217R2M has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, it's recommended to use a latch-up immune design, ensure proper power sequencing, and avoid voltage overshoots during power-up.
To optimize the MOCD217R2M for low-power consumption, consider using a low-dropout voltage regulator, minimizing the input voltage, and optimizing the output voltage. Additionally, using a low-power mode or shutdown feature, if available, can help reduce power consumption.
For testing and measurement, use a high-impedance probe to minimize loading effects. Ensure the test equipment is properly calibrated, and use a low-noise, low-impedance test setup. It's also recommended to follow the datasheet's recommended test circuits and procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOCD217R2M Overview

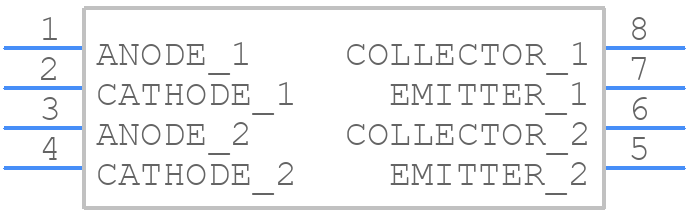

Use the download button to access the MOCD217R2M schematic symbol, PCB footprint, and 3D model.
