Description:DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; Minimum BVCEO of 30 V Guaranteed; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; High Current Transfer Ratio of 500% Minimum at IF= 1 mA; Safety and Regulatory Approvals:; UL1577, 2,500 VACRMS for 1 Minute
A good PCB layout for the MOCD223M involves keeping the input and output traces separate, using a ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, make sure to follow the recommended voltage and current ratings specified in the datasheet. Additionally, use a stable voltage source and decouple the power supply lines with capacitors to minimize noise and ripple.
The MOCD223M has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods.
To protect the MOCD223M from ESD, handle the device by the body or use an anti-static wrist strap, store the device in an anti-static bag, and use an ESD-protected workstation.
The MOCD223M has a typical lifespan of 10-15 years, depending on operating conditions. To ensure reliability, follow the recommended operating conditions, avoid overheating, and minimize power cycling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOCD223M Overview

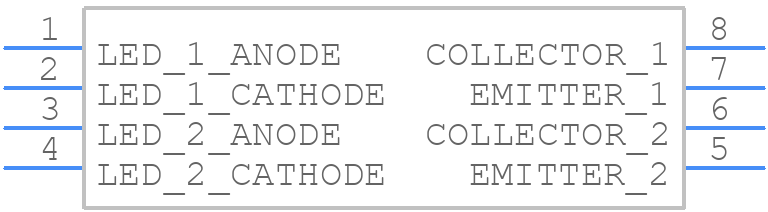

Use the download button to access the MOCD223M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MOCD2,
or try a keyword search, such as Optocoupler
