Description:DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage; Minimum BVCEO of 30 V Guaranteed; Convenient Plastic SOIC-8 Surface Mountable Package Style, with 0.050" Lead Spacing; High Current Transfer Ratio of 500% Minimum at IF= 1 mA; Safety and Regulatory Approvals:; UL1577, 2,500 VACRMS for 1 Minute
A good PCB layout for the MOCD223R2VM involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces. It's also recommended to use a 10nF capacitor between the VCC and GND pins to filter out noise.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input voltage should be within the recommended range of 0.5V to 2.5V, and the output should be terminated with a 1kΩ resistor to GND.
The MOCD223R2VM can operate up to 100 kHz, but the optimal frequency range is between 10 kHz to 50 kHz. Operating the device beyond the recommended frequency range may affect its performance and reliability.
To protect the MOCD223R2VM from ESD and overvoltage, use a TVS (Transient Voltage Suppressor) diode or a zener diode between the VCC and GND pins. Additionally, ensure that the input voltage does not exceed the recommended maximum rating of 5.5V.
The typical power consumption of the MOCD223R2VM is around 1.5mA at 5V supply voltage. However, this value may vary depending on the operating frequency, input voltage, and output load.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MOCD223R2VM Overview

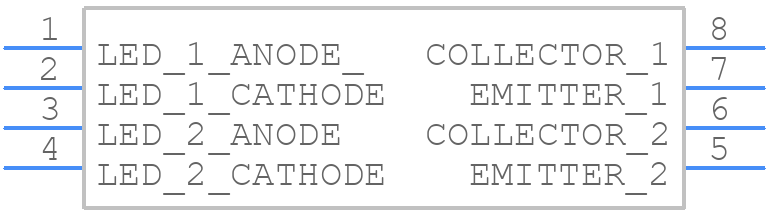

Use the download button to access the MOCD223R2VM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MOCD2,
or try a keyword search, such as Optocoupler
