A good PCB layout for the MP100LGN-Z involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R).
The maximum ambient temperature for the MP100LGN-Z is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to ensure good airflow and heat dissipation to prevent overheating.
Yes, the MP100LGN-Z is designed to withstand vibrations up to 10G. However, it's essential to ensure that the PCB is securely mounted and the components are properly soldered to prevent damage or dislodging.
To troubleshoot issues with the MP100LGN-Z, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout meet the recommended specifications. Use an oscilloscope to check for oscillations or noise on the output.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP100LGN-Z Overview

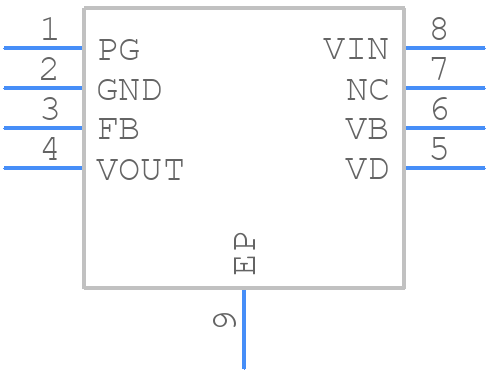

Use the download button to access the MP100LGN-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP100,
or try a keyword search, such as Other Signal Circuits
