MP106FC - Apex Microtechnology

Description: The MP106 is a high output power amplifier optimized for driving negative voltages. Rated with a 0 to 540nF drive capability, the MP106 is tailored for dynamically changing loads, such as capacitive loads used in piezo devices for inkjet printing applications, such as Dimatix "Samba" or similar heads. This amplifier is an open frame product design featuring a small footprint measuring just 73.4mm x 41.4mm and capable of up to 130W of internal power dissipation.

Download MP106FC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

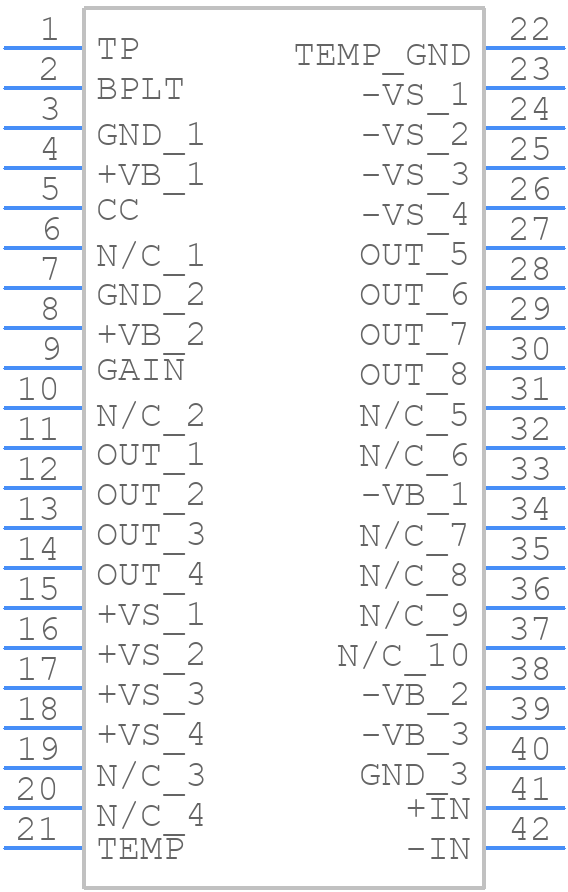

MP106FC - Apex Microtechnology - PCB symbol
click to zoom
PCB Footprints

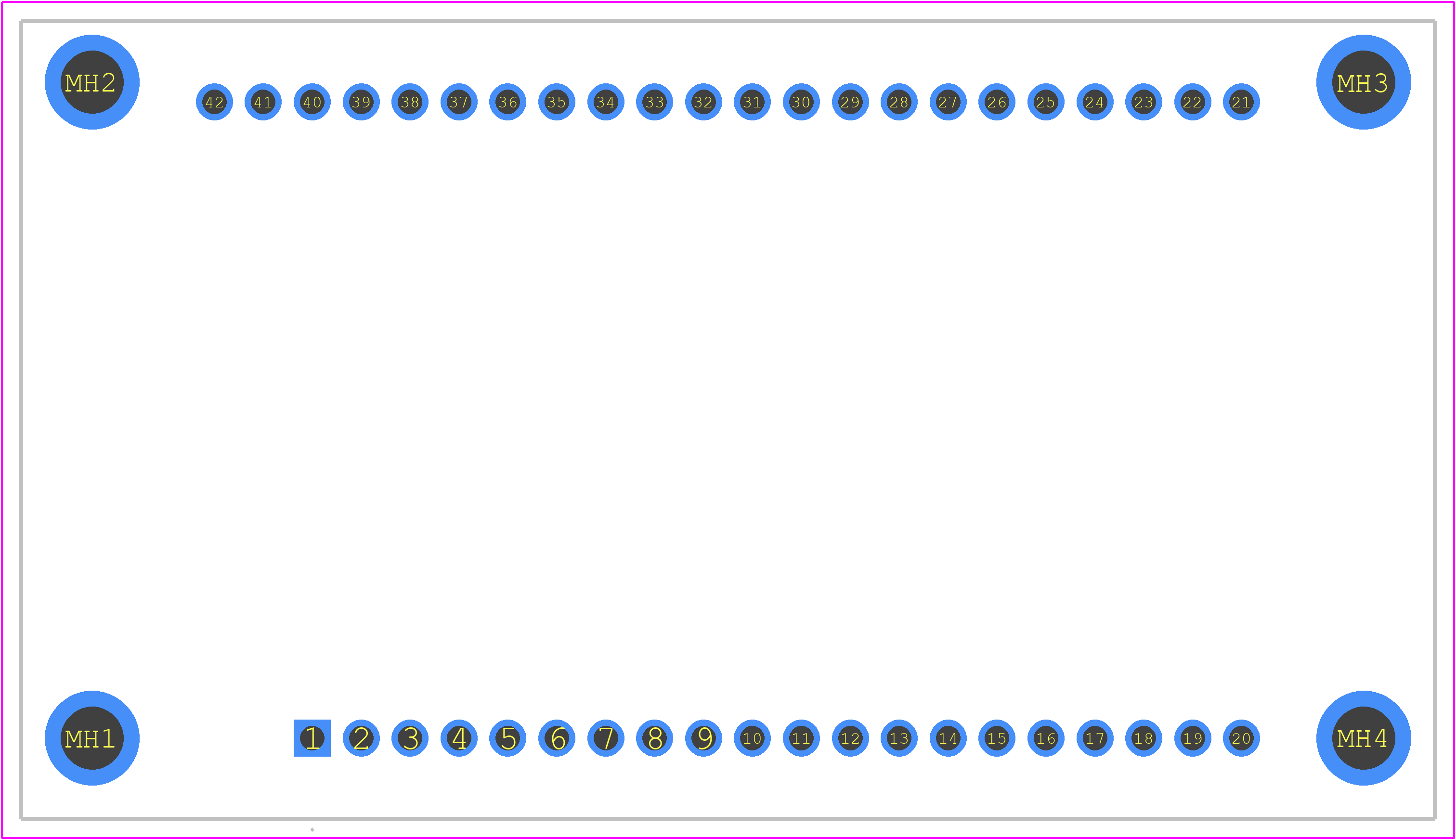

MP106FC - Apex Microtechnology PCB footprint - Other - Other - FC_46pins
click to zoom
3D Models
MP106FC - Apex Microtechnology - 3D model - Other - FC_46pins
click to zoom

MP106FC Details

  • Manufacturer Part Number:

    MP106FC

  • Manufacturer:

    Apex Microtechnology Inc

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP106FC Overview

Use the download button to access the MP106FC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP106, or try a keyword search, such as Bridge Rectifier Diodes
