MP111FD - Apex Microtechnology

Description: 15A, 100V, Low Cost, Open Frame Power Amplifier with High Power Bandwidth

Download MP111FD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

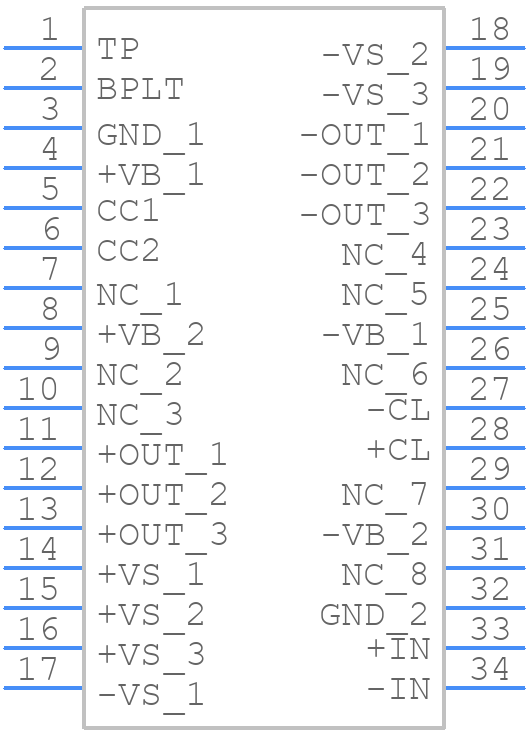

MP111FD - Apex Microtechnology - PCB symbol
click to zoom
PCB Footprints

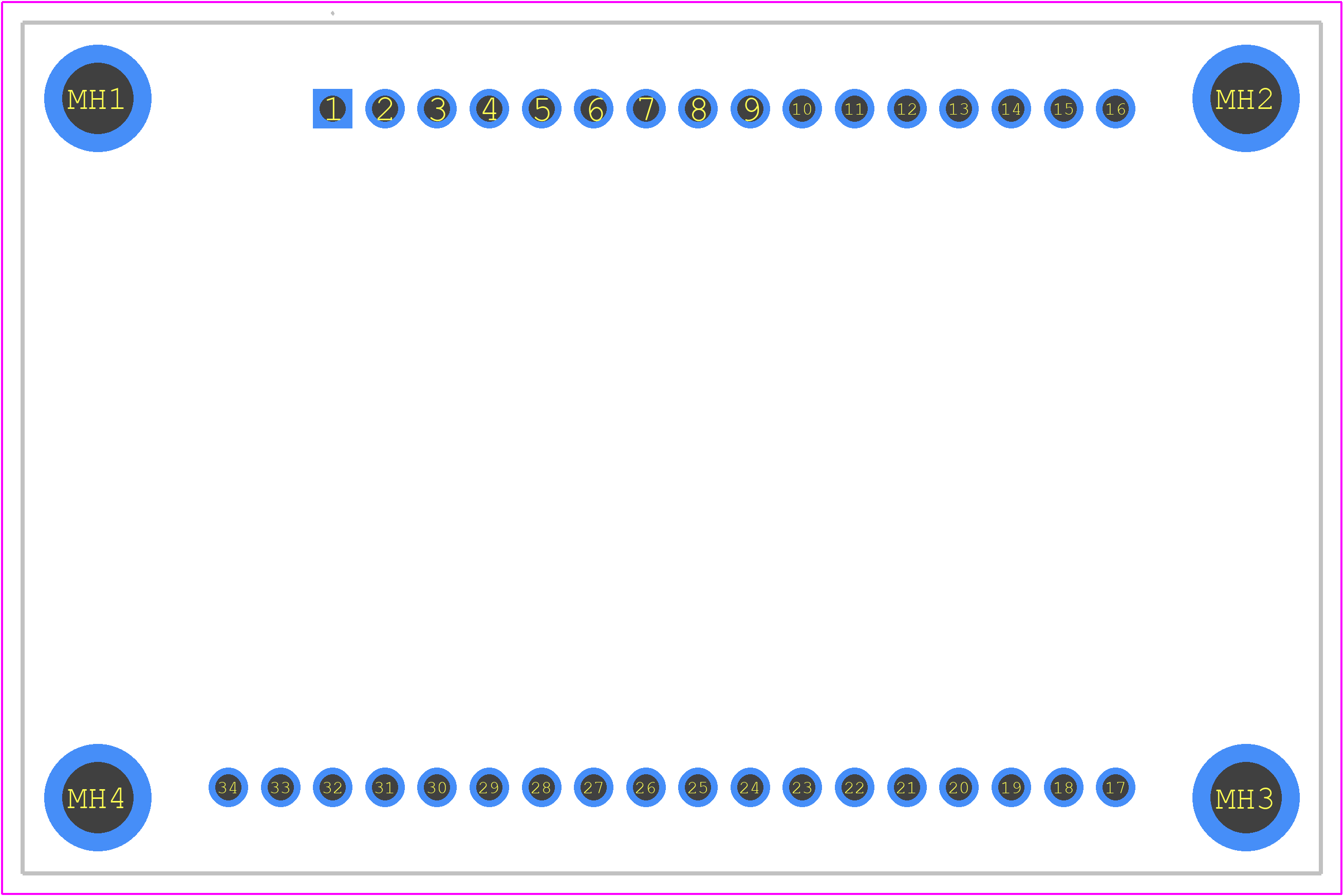

MP111FD - Apex Microtechnology PCB footprint - Other - Other - FD-34-pin Open_Frame
click to zoom
3D Models
MP111FD - Apex Microtechnology - 3D model - Other - FD-34-pin Open_Frame
click to zoom

MP111FD Details

  • Manufacturer Part Number:

    MP111FD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DMA

  • Package Description:

    Module-34

  • Pin Count:

    34

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0001 µA

  • Common-mode Reject Ratio-Nom:

    92 dB

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-XDMA-P34

  • Neg Supply Voltage Limit-Max:

    -50 V

  • Neg Supply Voltage-Nom (Vsup):

    -45 V

  • Number of Functions:

    1

  • Number of Terminals:

    34

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Slew Rate-Nom:

    70 V/us

  • Supply Voltage Limit-Max:

    50 V

  • Supply Voltage-Nom (Vsup):

    45 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    6000

MP111FD Frequently Asked Questions (FAQs)

  • Apex Microtechnology recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation at high temperatures, Apex Microtechnology recommends using a heat sink with a thermal interface material, and ensuring good airflow around the device. Additionally, the device should be operated within the recommended temperature range and derating should be applied for high temperature operation.
  • Apex Microtechnology recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for optimal performance. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
  • Apex Microtechnology recommends using a voltage clamp or a transient voltage suppressor (TVS) to protect the device from overvoltage conditions. Additionally, a current sense resistor and a fuse can be used to protect the device from overcurrent conditions.
  • Apex Microtechnology recommends using a symmetrical layout and routing for the output stage to minimize electromagnetic interference (EMI) and ensure optimal performance. The output traces should be kept short and wide, and the output capacitors should be placed as close to the device as possible.
